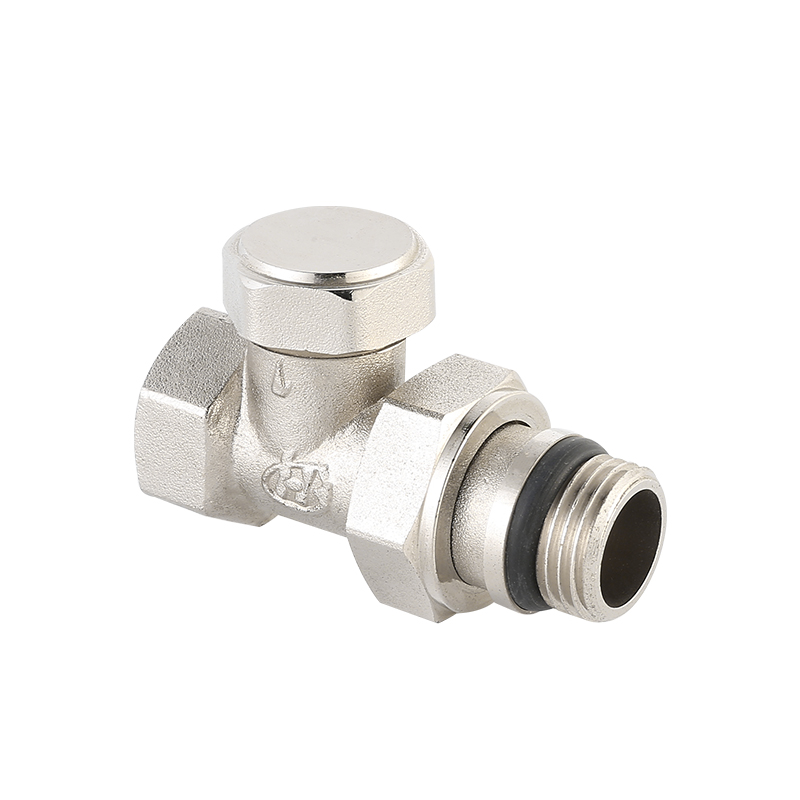

Lock shield brass radiator valve is used to control the amount of water that flows out of the radiator into the return pipework. Removing the cap reveals the top of a spindle, which usually has two straight sides at the top to take an open-ended or adjustable spanner.Spindles on some older radiators may have a square or half-moon shape. The spindle is turned with the spanner to adjust the flow of water through the radiator.
|
Size (inch) |
DN(mm) |
L(mm) |
H(mm) |
|
1/2 |
15 |
51 |
21 |
|
3/4 |
20 |
57 |
25 |
|
1 |
25 |
60 |
29 |
Material: Forged brass
Pattern: Straight pattern
Port: 2-way
Fields of Applications: Water, Hot water
Maximum Working Pressure: 1.6Mpa
Control temperature range: 0 - 30°C
Working temperature: 0ºC to 120ºC (from 32°F to 248°F)
Connection way: Male and female Thread Connections Comply With ISO228 (BS2779)
Certificate: CE ,SGS ,ISO9001
