We are a valve manufacturer with high volume production capability.

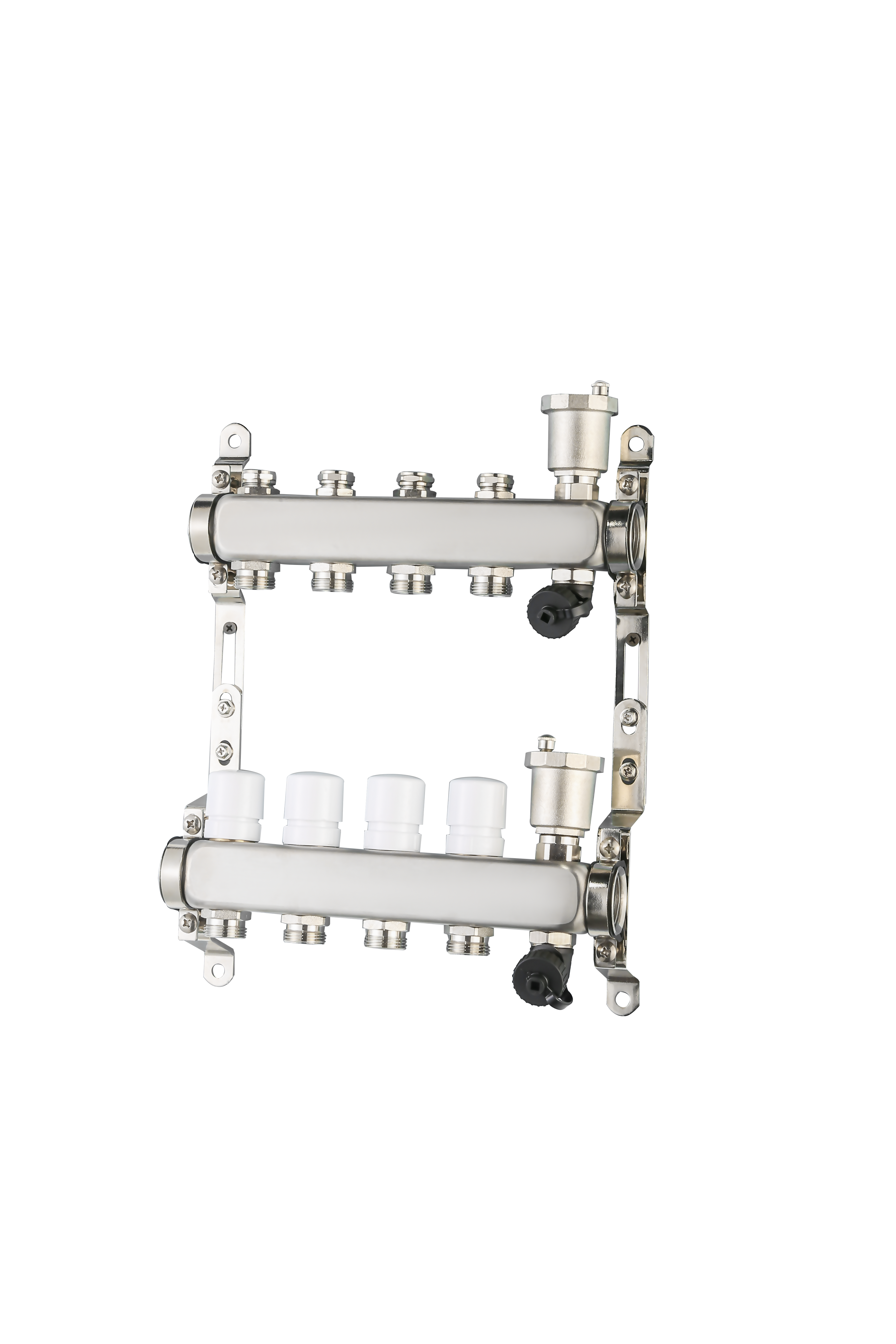

It is made of stainless steel,stainless steel is mainly used in the main pipe.Manifold provides fl ow balancing ,allow isolation of individual loops for each loop.It is widely used in building hot and cold water piping system, floor heating piping system, air conditioning piping system, etc.

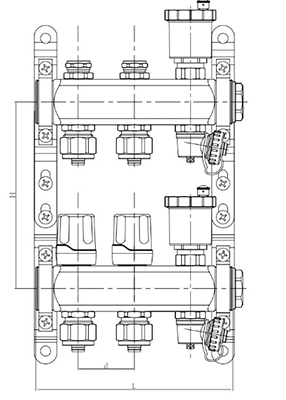

Specification |
d(mm) |
L(mm) |
H(mm) |
PEX adapter |
1''x2 |
50 |
176 |
220 |
1216 /1620 |
1''x3 |
50 |
226 |
220 |
1216 /1620 |
1''x4 |
50 |
276 |
220 |
1216 /1620 |
1''x5 |
50 |
326 |
220 |
1216 /1620 |
1''x6 |
50 |
376 |
220 |
1216 /1620 |
1''x7 |
50 |
426 |
220 |
1216 /1620 |
1''x8 |
50 |
476 |
220 |
1216 /1620 |
Material: Stainless steel 304
Fields of Applications: Water、heating system
Main pipe diameter: DN25mm
Branch pipe diameter: 1216/1620mm
Threaded connection: comply with ISO228
Working pressure: PN≤1.2 Mpa
Testing pressure: 0.8~1.0 Mpa
Certificate: CE、SGS、 ISO9001
We are a leading Custom Copper Water Control Floor Heating Manifold Suppliers/Factory in the valve industry, with more than 25 years of experience, specializing in the field of HVAC system parts and brass valves. Huibo Valve has its own factory, which is located in Yuhuan County, Zhejiang Province, the hometown of brass valves in China.
Now as the top manufacturer of high quality HVAC system parts and brass valve, our main products cover brass manifold, stainless steel manifold, thermostatic radiator valve, manual radiator valve,balance valve, motorized valve, air vent, ball valve, gate valve, gas valve, check valve, brass fittings and so on with more than 40 series and 2000 varieties.
