We are a valve manufacturer with high volume production capability.

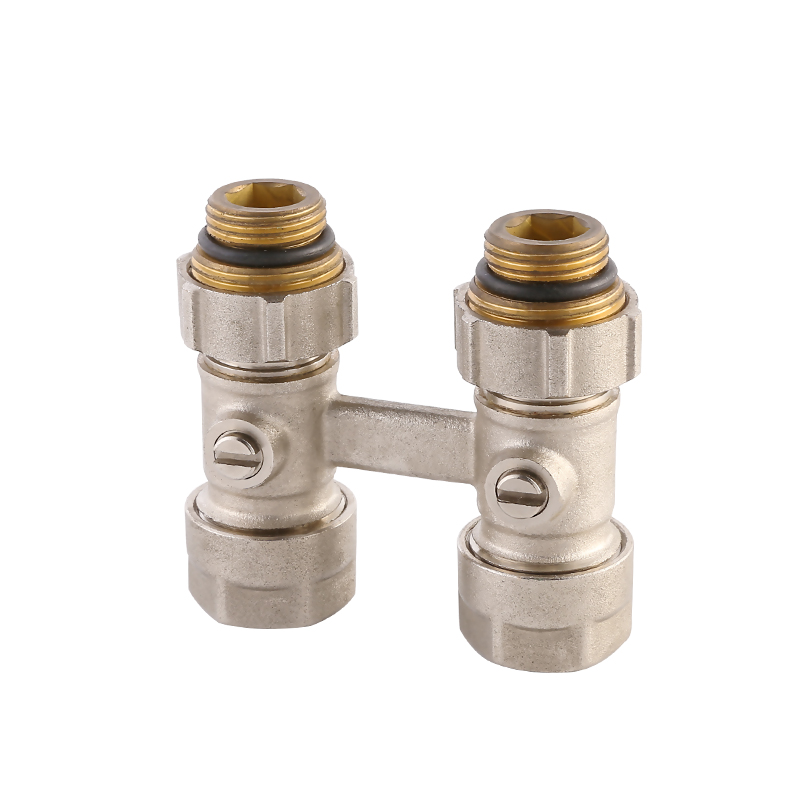

H type lock shield brass radiator valve is necessary when the inlet and outlet connections of the radiator are located at the same spot. Radiators with built-in taps and fittings use DS/DD series H type lock shield valves for two pipe plants, or with adjustable bypass for single pipe plants.
DN |
SIZE |
L(mm) |
H(mm) |
P |
15 |
1/2 |
74 |
50 |
1216 |
15 |
1/2 |
74 |
50 |
1620 |
Material: Forged brass
Type: H-shape
Fields of Applications: Water, Hot water
Maximum Working Pressure: 1.6Mpa
Working temperature: 0ºC to 120ºC (from 32°F to 248°F)
Certificate: CE, SGS, ISO9001, ISO14001
We are a leading Custom H Type Lock Shield Brass Radiator Valve Suppliers/Factory in the valve industry, with more than 25 years of experience, specializing in the field of HVAC system parts and brass valves. Huibo Valve has its own factory, which is located in Yuhuan County, Zhejiang Province, the hometown of brass valves in China.
Now as the top manufacturer of high quality HVAC system parts and brass valve, our main products cover brass manifold, stainless steel manifold, thermostatic radiator valve, manual radiator valve,balance valve, motorized valve, air vent, ball valve, gate valve, gas valve, check valve, brass fittings and so on with more than 40 series and 2000 varieties.
