We are a valve manufacturer with high volume production capability.
Ball valve is not only simple structure, good sealing performance, but also in a certain nominal range of small volume, light weight, less material consumption, small installation size, and small driving torque, simple operation, easy to achieve rapid opening and closing. Ball valve is evolved from the plug valve, its opening and closing parts as a ball, using the ball around the axis of the stem to rotate 90° to achieve the purpose of opening and closing. Ball valves are mainly used to cut off, distribute and change the direction of medium flow on the pipeline. The ball valves designed as V-shaped openings also have good flow regulation function.

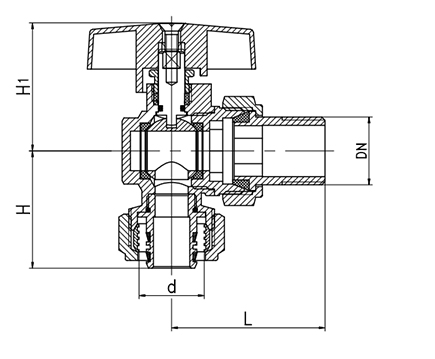

DN |
SIZE |
L |
H |
H1 |
15 |
1/2 |
46.5 |
35.5 |
39 |
20 |
3/4 |
55 |
42 |
45.5 |
25 |
1 |
65 |
49 |
52 |
Material: Brass
Field of Application: Water. Gas, Oil
Work Temperature: -20ºC to 120ºC
Working pressure: 1.6Mpa
Thread standard: ISO228
We are a leading Custom Water Distributor Angle Ball Valve Suppliers/Factory in the valve industry, with more than 25 years of experience, specializing in the field of HVAC system parts and brass valves. Huibo Valve has its own factory, which is located in Yuhuan County, Zhejiang Province, the hometown of brass valves in China.
Now as the top manufacturer of high quality HVAC system parts and brass valve, our main products cover brass manifold, stainless steel manifold, thermostatic radiator valve, manual radiator valve,balance valve, motorized valve, air vent, ball valve, gate valve, gas valve, check valve, brass fittings and so on with more than 40 series and 2000 varieties.
