Manifold is a water distribution and collection device for connecting various heating pipes for water supply and return in water system. Manifold in the floor heating system is mainly responsible for the opening and closing of loop water flow of floor heating, when the water in the gas boiler through main line into the diversity in the water, after filter impurities of the isolation, after the water allocation to the loop, after heat exchange is returned to the water back to the Lord, and again by the nozzle flow of the heating system in the back.

The radiator valve can set the room temperature according to the different requirements of the user. The temperature sensing part of the valve constantly feels the room temperature and automatically adjusts the heat supply at any time according to the current heat demand, so as to prevent the room temperature from overheating and achieve the highest comfort of the user. Adopt humanized appearance design, easy installation, easy operation, sensitive adjustment, good linearity, convenient temperature locking, can lock a person's temperature value can also lock a temperature range, feel good when using.

Water mixing system overall structure, easy to install, can protect the boiler, prolong service life, improve the efficiency of the boiler, save fuel gas use fees, can truly achieve chamber and control, ensure that separate open every area can provide a comfortable heating temperature, increasing the heating water flow, improve the effect of heat transfer and protect the floor heating pipe in floor heating and radiator mixed system.

The electric actuator is mainly used in the floor heating system to control the closing and opening of the pipeline. It is specifically used in the electric driving part of the electric actuator of the branch valve of the water diversity device, the small valve and the dynamic balance valve. The operation is noiseless, the nut connection installation method is simple, the installation is quick, the disassembly is convenient.

Balance valve is in the hydraulic condition, play a dynamic, static balance adjustment valve. It is by changing the clearance between the valve core and valve seat, adjust valve Kv (valve flow capacity ）to alter the flow through the valve the flow resistance in order to achieve the purpose of flow adjustment of the function object is the resistance of the system, eliminate the resistance unbalance phenomenon in the system, thus to new water allocation proportion according to the design and calculation of balance, each branch in proportion to increase or decrease at the same time.

Air vent valve is an indispensable auxiliary component in pipeline system, widely used in boilers, oil and gas, water supply and drainage pipelines. Because water is usually dissolved with a certain amount of air, and the solubility of air decreases with the increase of temperature, so that in the process of water circulation, the gas gradually separates from the water, and gradually gathers together to form large bubbles or even gas columns. Because of the water supplement, there are often gas produced. The air vent valve is often installed at the commanding point or elbow to eliminate excess gas in the pipeline, improve the efficiency of pipe road use and reduce energy consumption.

Ball valve is a pipeline system can fast truncation, through to medium flow control components, are widely used in the system, such as water, gas, HVAC, oil ball valve has evolved from the cock, its opening and closing as a sphere, using the ball around the stem axis rotate 90° the realization of the aim of opening and closing, it has the lowest flow resistance, compact structure, small volume, light weight.

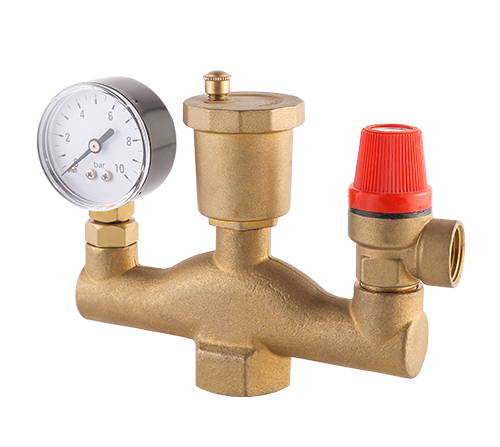

The safety valve is automatically according to the working pressure of the pressure system opening and closing, general installation in a closed system of the equipment or piping safety protection system. When the equipment or pipeline pressure exceeds the safety valve set pressure, pressure relief automatically open, ensure that the equipment and piping within the medium pressure in the set pressure, protect the equipment and piping work, prevent accidents and reduce losses.

Motorized valve is mainly used in heating, air conditioning system, according to the set temperature automatic open/close loop or corresponding terminal, electric two-way valve piston for spring return type closed, motor for synchronous motor, with the auxiliary control, this approach applies to install control an area before manifold, also suitable for direct installation in the end.The connection is made with a live nut, easy installation and quick disassembly.
